Dura-Glide^® 2000/3000

The number one selling automatic sliding door in North America.

This state-of-the-art automatic door boasts a wealth of benefits, from handling high foot traffic to keeping your entrances compliant with accessibility laws.

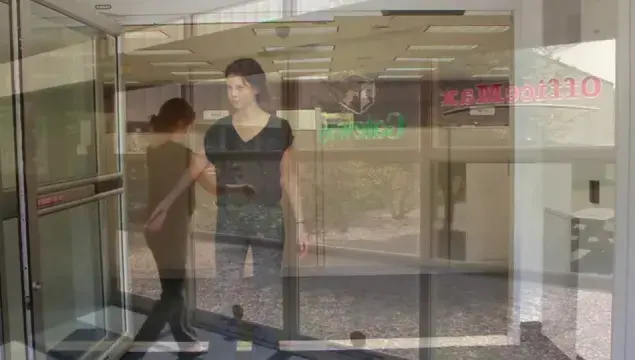

Breakout Demonstration on STANLEY Dura-Glide Automatic Sliding Door

https://www.stanleyaccess.com/media/oembed?url=https%3A//stanleyaccesstechnologies.wistia.com/medias/a05vm3jqug&max_width=854&max_height=480&hash=RcqyBHAaV3WtlXuoCG2gFLJ5SY8AZ8kmRy3VhCU8YHA
https://www.stanleyaccess.com/media/oembed?url=https%3A//stanleyaccesstechnologies.wistia.com/medias/a05vm3jqug&max_width=854&max_height=480&hash=RcqyBHAaV3WtlXuoCG2gFLJ5SY8AZ8kmRy3VhCU8YHA

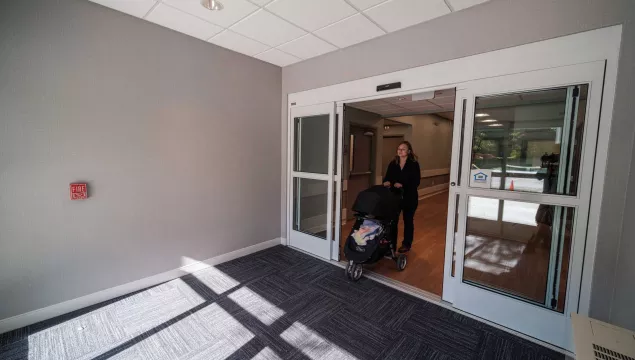

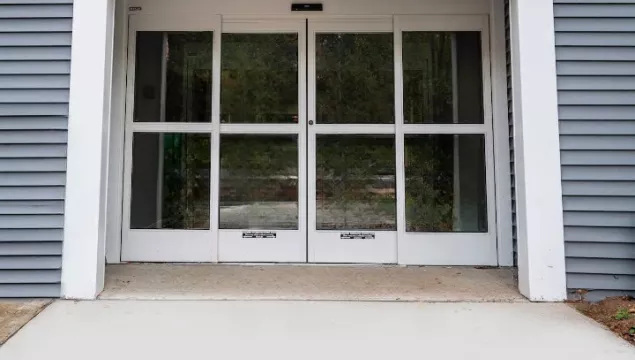

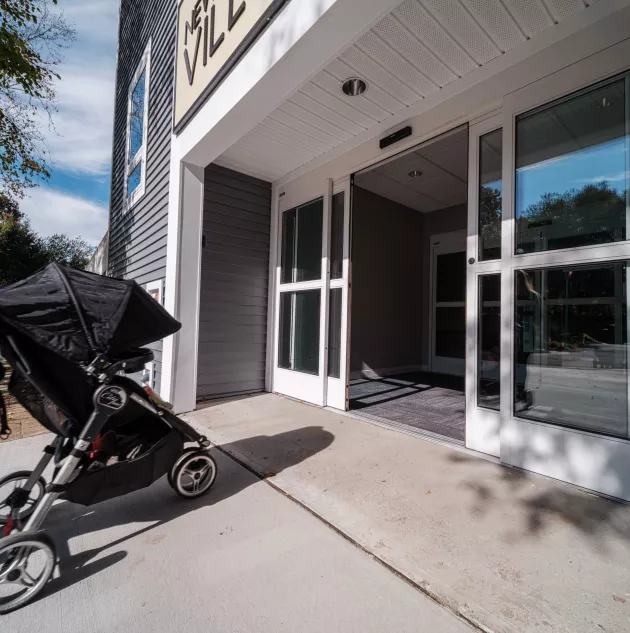

A set of sliding doors at the new horizons village building.

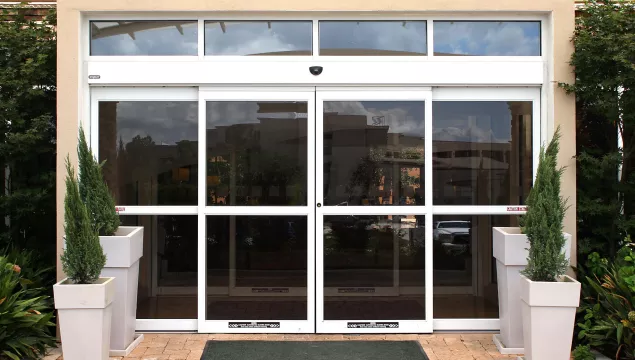

A set of dura glide doors at a holiday inn.

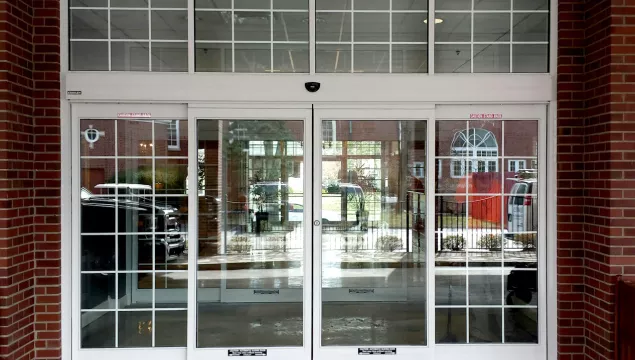

A set of dura glide doors at a southern baptist church.

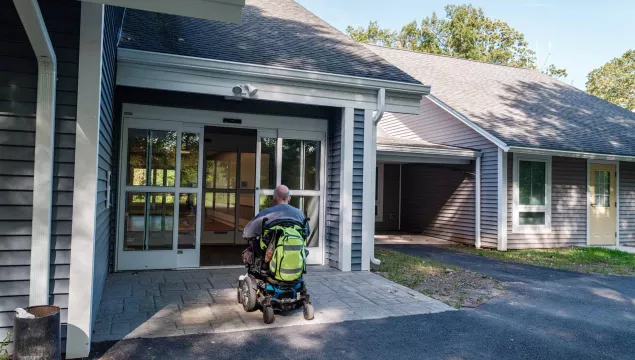

A person in a wheelchair going through a door.

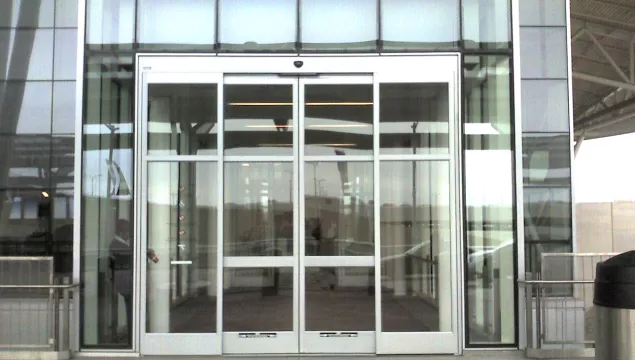

A set of dura glide doors at the airport.

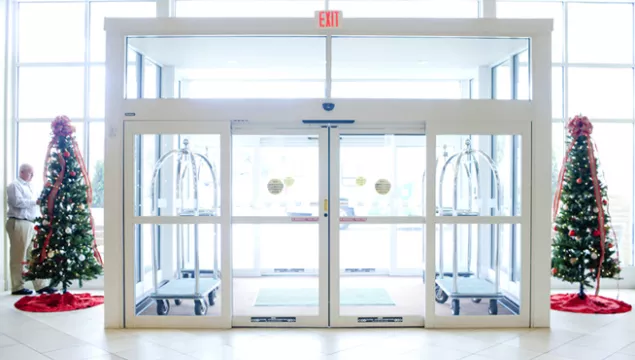

A set of dura glide doors at the holiday inn.

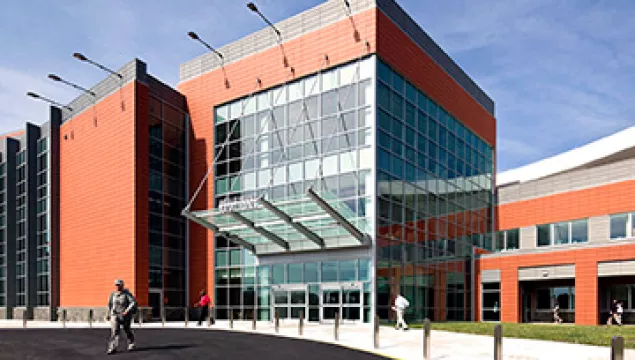

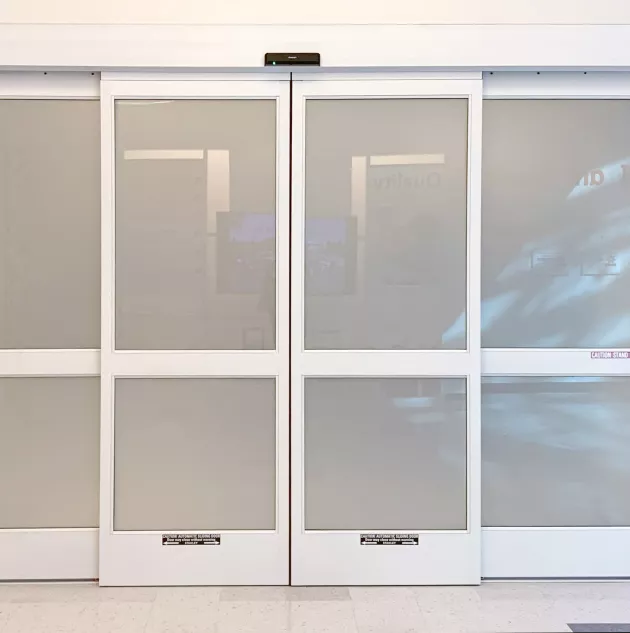

a set of dura glide doors in a building.

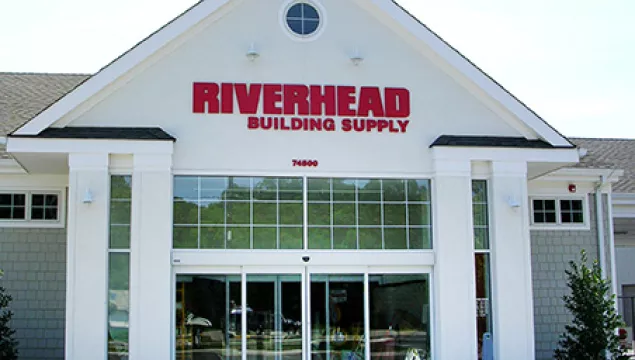

A set of dura glide doors to a building.

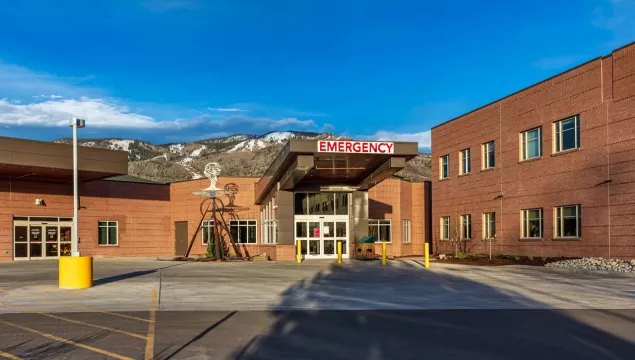

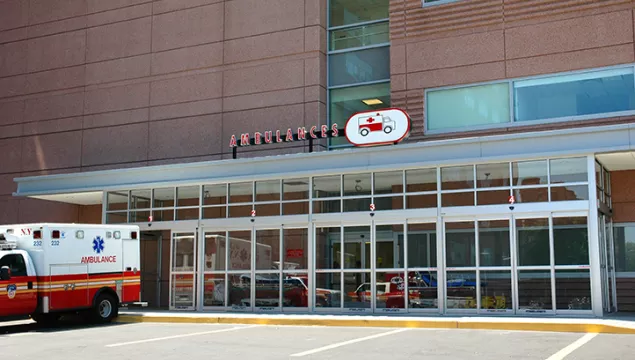

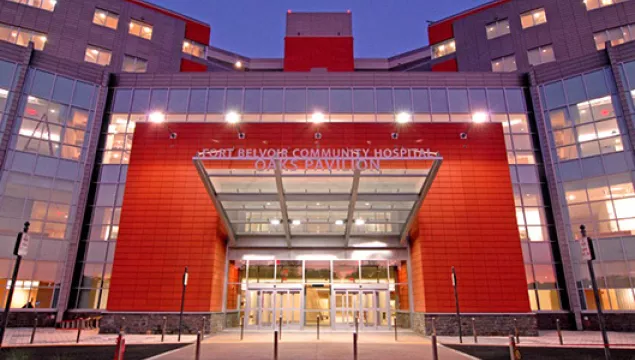

A set of dura glide doors in a hospital.

Dura-Glide® 2000/3000 Models

Our Dura-Glide® doors are some of our most popular sellers. Explore our Dura-Glide models.

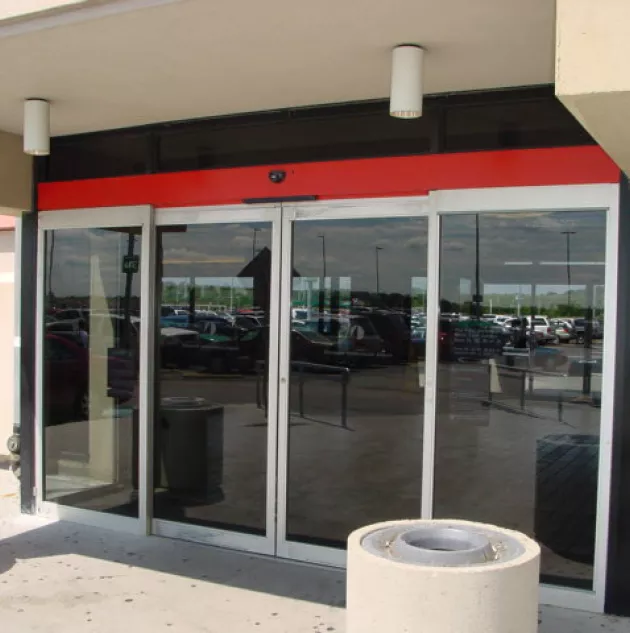

dura glide 3000 doors installed in a parking garage.

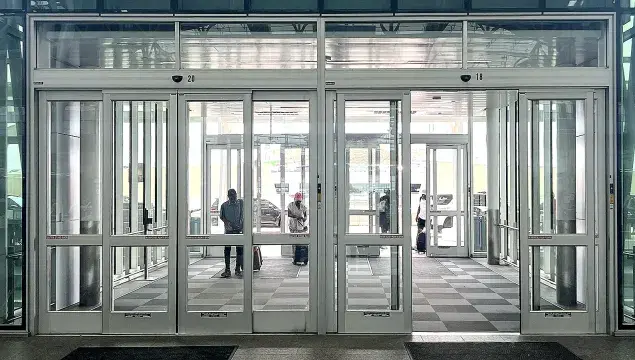

Full Breakout (3000 only)

All door panels swing out allowing for maximum width for emergency egress.

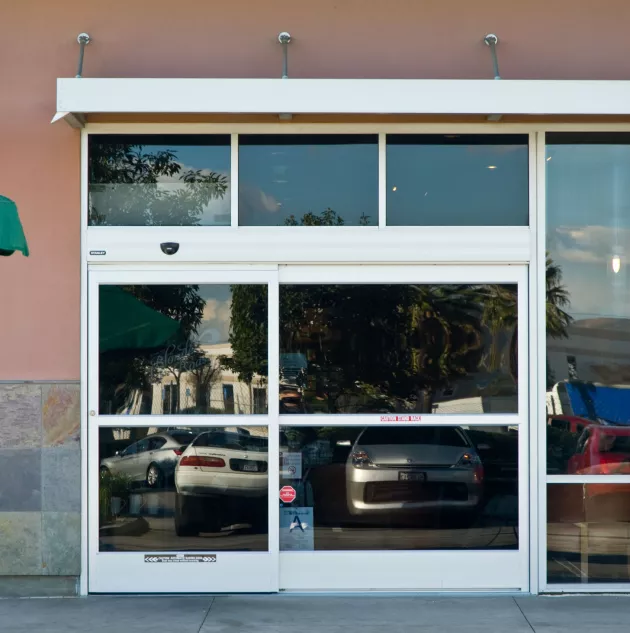

A dura glide door installed at starbucks.

Partial Breakout (2000 only)

Only the sliding panels breakout for emergency egress.

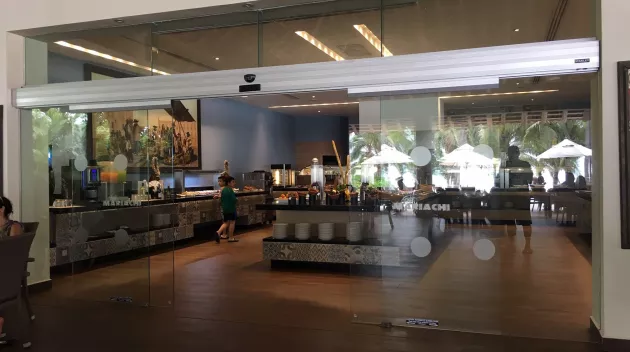

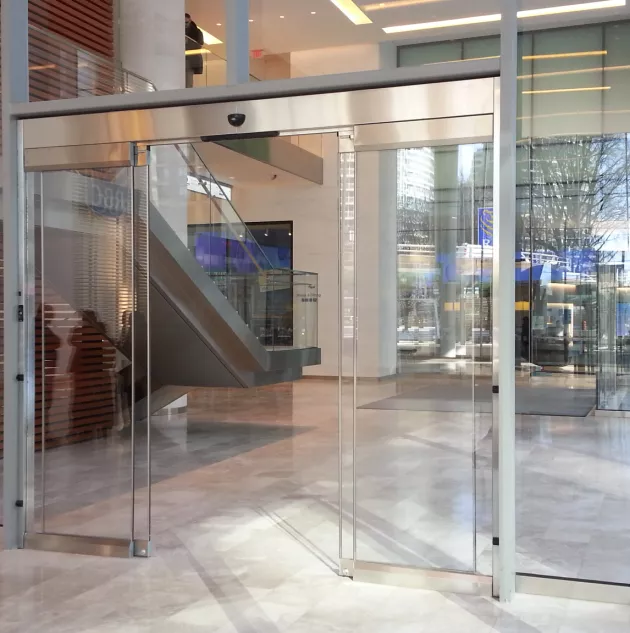

All Glass

All glass doors and sidelights with breakout.

Eco-Friendly

The Dura-Glide® GreenStar comes with an air infiltration package and meets ASTM E283.

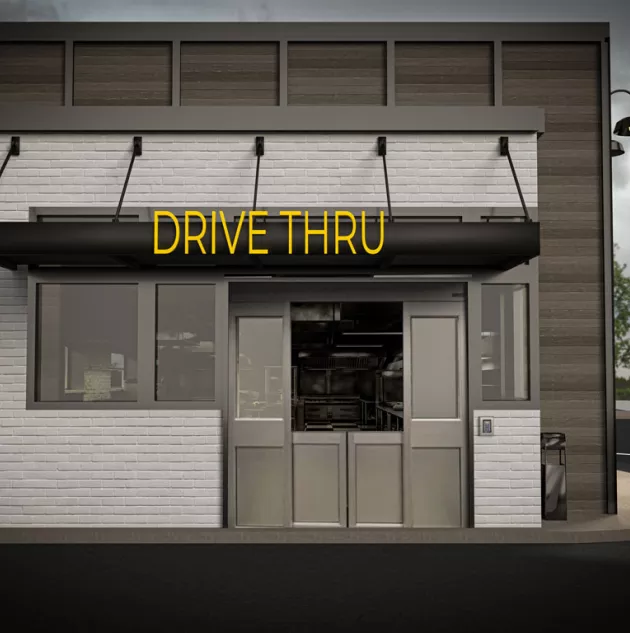

Drive-Thru Door/Window

With the flexibility to operate in window or door mode, staff can easily service drive-thru customers; minimizing steps and reducing wait times. Learn More about the Dura-Glide® DT™

The Dura-Glide® Difference

The highest horsepower motor in the industry comes standard. Enjoy years of high performance without uneven closing, squeaking or header sag.

Safety and Security Above and Beyond

Presence sensors come with redundant monitoring. Security, theft prevention and liability protection options.

Dura-Glide® 2000/3000 Benefits

Designed with you in mind, our Dura-Glide® automatic sliding doors are completely customizable to meet your precise needs and specifications. Our clean-room rated designs are sleek and sophisticated while still providing you with the utmost protection.

Compliance

Compliance with all U.S. and Canada accessibility laws

Hardware Options

Various hardware options and special finishes available.

Low Energy Features

Energy-efficient features, including a low energy consumption operator.

Full Energy Features

Full energy opening speeds range from 0.5'–2.5' per second.

Medium to High Foot Traffic

A cost effective way to direct traffic flow; the right side panel is used for ingress and the left for egress.

High Horsepower Motor

The highest horsepower motor in the industry means the door will operate with less effort and less wear and tear on the motor.

Tie Rod Panel Construction

Since it's constructed using a long rod that goes all the way across the door, the door can't fall apart (as opposed to corner clip construction).

Synchronous Belt Drive

As opposed to linear and screw drives, the synchronous belt drive (a belt with teeth) means it won't slip or come off-track.

Add-Ons & Accessories

Automatic Door Sensors

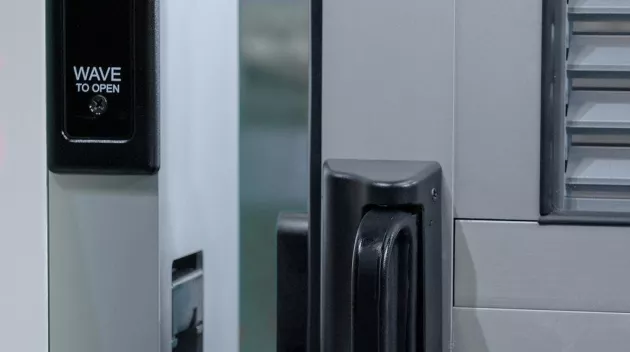

A view of a door opening sensor and the door latch.

Slide Door Openers

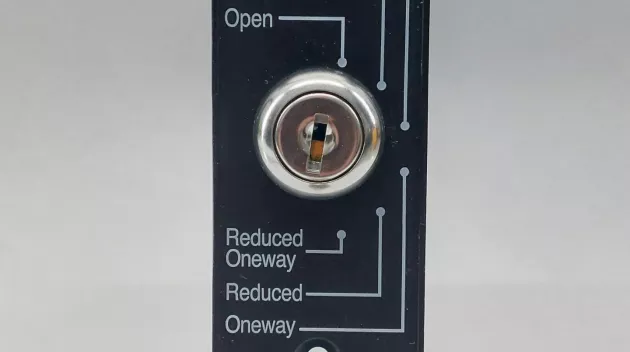

Function Switch Options

Heading

Speak with an Expert

Subtitle

CTA

Find a Rep

Product FAQs

We've been experts in automatic doors for over 80 years, and our Dura-Glide® doors are some of our most popular models. Have questions? We've got the answers.

How does this door lock?

Typically, this door comes with a mechanical lock. It's keyed on the outside with a thumb turn on the inside. Note that when the door is locked, it doesn't break out. Varying access control options are also available, such as a retinal scanner, key switch, keypad, or card reader.

Which Dura-Glide® doors are trackless?

Only the Dura-Glide® 2000 can sit on the ground without any track. This is because only the sliding panels break out. The Dura-Glide® 3000 requires a track/threshold because all panels break out.

What stile size options does this door offer?

The Dura-Glide® 2000/3000 is a robust sliding door system based on traditional stile and rail panels in narrow and medium stiles. The wider you make the stiles, the less the door can slide (less CDO).

What kinds of add-ons or accessories are available for this door?

Security strobe
Transom with different numbers of verticals
Custom finishing
Different bottom rails
Threshold options for 3000
Different control switches, keyed or not keyed
Uninterruptable power supply
Wind dampers
Panel closers
Clean room certified option
Different kinds of glass

Can I open the automatic door in case of a power outage?

Stanley Dura-Glide® 2000/3000 Series sliding automatic entrances are equipped with a "breakout" feature that allows for fast emergency exit, with or without power. Simply pushing on the sliding panel will release the panel to swing out. On a 2000 Series, only the sliding panels break out; on 3000 the sliding panel and adjacent sidelight breakout.

What should I do when I think the automatic door fails to operate?

Check power supply, observe and clear any obstructions; if issues persist, call for service.

What should I do to keep the automatic door safe and reliable?

Run your "Daily Safety Check", keep door and threshold clear of obstructions.

What kind of services will you provide for repair contract?

Specifically tailored to meet your needs, STANLEY Access Technologies' planned service agreements utilize regular schedules to reduce service interruptions and minimize costly repairs. Each agreement includes routine 14-point inspections, cleaning, lubrication, code/compliance service checks and can include options for increased cost savings on parts and labor.

Do automatic doors have a safety standard?

All members of the American Association of Automatic Door Manufacturers (AAADM) make their automatic doors and components in compliance with the Standard for Power Operated Pedestrian Doors, ANSI/BHMA A156.10, or Standard for Power Assist and Low Energy Power Operated Doors ANSI/BHMA A156.19. This national consensus standard defines and governs such things as installation, sensing devices, and safety requirements for automatic pedestrian doors.

Are automatic doors always required to meet ADA requirements?

Not necessarily, but they are frequently the most cost-effective solution, especially if there are space limitations. You should consult with your architect to determine the optimal door type. Conditions to consider are building space limitations, personnel traffic patterns, and levels, egress requirements, plus wind conditions for outside doors.

How do the doors sense when someone is passing through?

Typically, safety sensors above the doors regulate door openings and closings. A properly maintained automatic door will not close if there is something or someone in the way. Naturally, though, people should exercise reasonable caution and keep moving when passing through automatic doors. Also, note that doors operating under the "Low Energy" standard, ANSI/BHMA A156.19 do not require safety sensors.

How long does an automatic door stay open after opening to allow me to pass through?

The delay time after opening is user-adjustable varies depending on the standard being applied and the type of operator. Typically for a swinging "Low Energy" application (push to operate), it is 5 seconds and 1.5 to 2.5 seconds for fully automatic swing doors with appropriate safety systems in place. Controls allow adjustment up to 50 seconds.

What types of Automatic sliding doors are available?

Automatic sliding doors are available in single slide, bi-part slide, and telescopic slide, and bifold configurations. As a rule, these are furnished as complete packages and can be surface mounted or jamb mounted, and can incorporate integrated transoms. Slide doors typically include an operator, header, track, carrier wheels, sliding door panel(s), sidelite panel(s), jambs, lock, and activation/safety system. Other options are also available.

What is AAADM?

AAADM stands for The American Association of Automatic Door Manufacturers. They are a trade association of manufactures of automatic pedestrian door systems.

Still have a question?

Fill out a question form or call your local STANLEY representative and someone will get back to you as soon as possible.

Other Automatic Sliding Doors

See all doors

/products/dura-glide-all-glass-20003000

/products/dura-glide-telescopic-52005300

/products/dura-glide-20003000-utility-package

/products/dura-glide-20003000-designer-package

Standard Features

Clear or Dark Bronze Anodized
Key/thumb turn hook bolt

Optional Features

Special Finishes Available
Taller Options Available
Alternate Locking Options
Alarm Contacts for remote monitoring of panel status
Security Strobes
Delayed Egress

Specifications

Design

Single Slide or Bi-part

Breakout

SX Panel on the 2000, SX and SO panels on the 3000 | OPTION: Wind Resistant Dampers reduce the potential for panel damage caused by wind gusts when panels are broken out, optional flush or surface mounted panic hardware.

Finish

Clear or Dark Bronze Anodized | OPTION: Special Finishes Available

Typical Package Height

7'-8" (2.3m), Clear Door Opening of 6'-11" (2.1m) | OPTION: Taller options available*

Typical Width Single Slide (Narrow Stiles)

7' to 9' (2.1 to 2.7m), CDO width 35 1/4" - 47 1/4" (896mm - 1201mm). 2000 Emergency Breakout: 39" - 51" (991mm - 1296mm). 3000 Emergency Breakout: 75" - 99" (1905mm - 2515mm)

Typical Width Bi-Part (Narrow Stiles)

10' to 14' (3.0m - 4.3m), CDO width: 48 1/4" - 72 1/4" (1227mm - 1836mm). 2000 Emergency Breakout: 55 1/2" - 79 1/2" (1411mm - 2021mm). 3000 Emergency Breakout: 105 1/2" - 153 1/2" (2680mm - 3899mm)

Header Size

8" (203mm) High x 6" (152mm) Deep

Jamb Dimension

1 3/4" x 4 1/2" | OPTION: 1 3/4" x 6"

Stiles

Narrow 2" | OPTION: Medium 3 1/2"

Bottom Rail

4" | OPTION: 6", 8", 10", 12"

Typical Door Panel Weight

Up to 220 Pounds Each (100kg) | OPTION: Heavier options available*

Door Panel Materials

Aluminum | OPTION: All Glass or Custom

Power Required

120 VAC, 50/60 HZ, 5 Amps Minimum | OPTION: Uninterrupted Power Supply

Drive System

1/4 HP DC Motor, Gear Drive, Toothed belt | OPTION: Twin 1/4 HP DC Motors

Controls

Rocker Switch | OPTION: Rotary, Keyed Rotary Controls, Eco Pro

Controller

High Resolution iQ Controller, Microprocessor Based, Safety Logic

Activation/Safety Sensors

2 Combined Activation/Safety Sensors + Holding Doorway Holding Beams for added safety | OPTIONS: Mats, Wall Plates, Wireless Activation systems

Locking

Key/thumb turn hook bolt | OPTION: 3-Point Locking, Lock Position Indicators, Electric Solenoid Lock (Fail Safe/Fail Secure), Access Control Locking with Surface or Recessed Panic Hardware, Lock Guard, Armored Strike

Security Options

Alarm contacts for remote monitoring of panel status, Security Strobes, Delayed Egress

Temperature Rating

-30F to 130F

Glass Stops

1/4" | OPTION: 1/2", 5/8", 1"

Muntin

One 2" muntin | OPTION: 4 1/4", Multiple

Threshold

Configurable Options

Transom

Configurable Verticals and/or Horizontals

Speed Range

Closing Speeds: 0.5' - 1.5 per sec per ANSI. Opening Speeds: 0.5' - 2.5' per sec.

Codes & Standards

UL, cUL, ANSI/BHMA A156.10, IBC, UBC, BOCA, ICBO, NFPA 101, CSFM. See Asset Library for specific documents.

* All Specifications are subject to change. Please contact your local sales representative to ensure accuracy.
